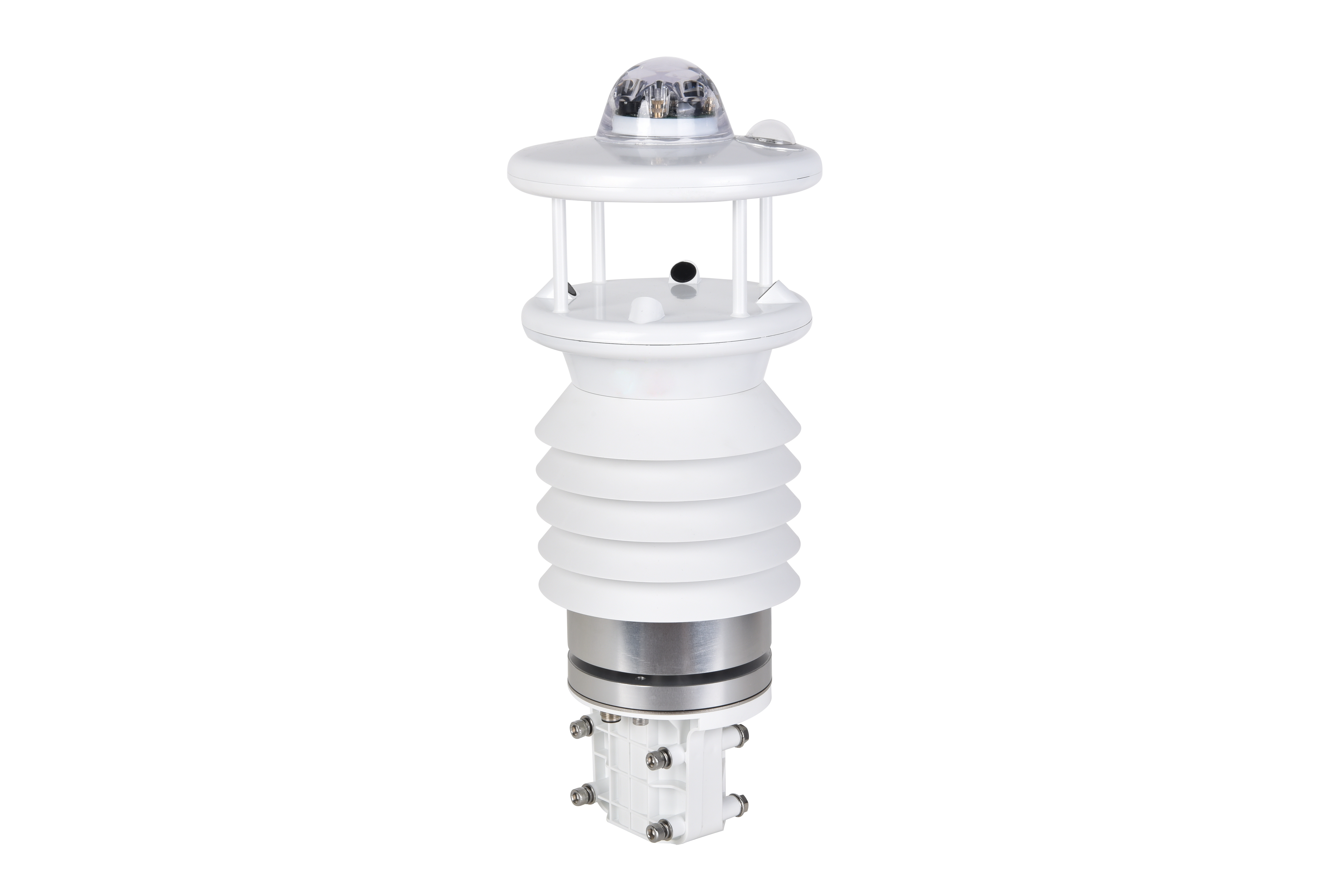

AWS-PRO
AQ and Weather Sensor
AWS series is mirco air quality and weather station used to monitor the current air quality and
weather around the installation point.
Compared with traditional standard air quality stations, it is smaller in size, lower in cost, and
easier to install.
Its real-time air quality view helps governments and environmental management departments take
action to protect public health, avoid the continuous spread of pollution, optimize infrastructure,
and have more confidence in strategic planning.
It provides first-class accuracy, simple deployment, easy integration, long service life, and high
reliability.
The AWS series of air quality and weather monitoring solutions enable you to measure the most
critical pollutants in the urban environment in real-time, so that you can proactively inform
citizens, raise awareness, and reduce the impact of pollution. At the same time, it supports
customization of parameters such as gases, PM, noise, and weather station parameters.
Technical Parameters
| ITEM | DESCRIPTION | |
|---|---|---|
| Wind Speed | Measurement range | 0 … 60m/s |
| Accuracy | ±0.3 m/s or 3% of reading, whichever is greater | |
| Resolution | 0.1m/s | |
| Wind Direction | Measurement range | 0 … 359.9° |
| Accuracy | ±3° | |
| Resolution | 0.1° | |
| Temperature | Measurement range | -40 … ＋80℃ |
| Accuracy | ±0.5℃ | |
| Resolution | 0.1℃ | |
| Relative Humidity | Measurement range | 0 … 100% RH |
| Accuracy | ±3% RH | |
| Resolution | 0.1% RH | |
| Air Pressure | Measurement range | 10 … 1100hpa |
| Accuracy | ±0.5hpa | |
| Resolution | 0.1hpa | |
| Rainfall | Measurement range | piez:0 … 200mm/h , Photo:0 … 400mm/h |
| Accuracy | ±5% | |
| Resolution | 0.1mm/h | |
| Solar Radiation | Measurement range | 0 … 2000W/㎡ |
| Spectral Range | 300nm … 2100nm | |
| Non-linearity error | ≤3％ | |
| Accuracy | ±5% | |
| Resolution | 1W/㎡ | |
| PM2.5 | Measurement range | 0 … 1000 ug/m3 |
| Accuracy | ±10% | |
| Resolution | 0.3 ug/m3 | |
| PM10 | Measurement range | 0 … 1000 ug/m3 |
| Accuracy | ±10% | |
| Resolution | 0.3 ug/m3 | |
| NOISE | Measurement range | 30 … 130db |
| Accuracy | ±3% | |
| Resolution | 0.1 db | |
| TVOC | Measurement range | 0 … 1000 PPb |
| Accuracy | ±25 PPb | |
| Resolution | 1 PPb | |
| CO2 | Measurement range | 0 … 5000 PPM |
| Accuracy | ±75 PPM | |
| Resolution | 1 PPM | |
| CO | Measurement range | 0 … 20 PPM |
| Accuracy | ±0.02 PPM | |
| Resolution | 0.01 PPM | |
| NO2 | Measurement range | 0 … 20 PPM |
| Accuracy | ±0.001 PPM | |
| Resolution | 0.001 PPM | |
| SO2 | Measurement range | 0 … 20 PPM |
| Accuracy | ±0.002 PPM | |
| Resolution | 0.001 PPM | |
| O3 | Measurement range | 0 … 20 PPM |
| Accuracy | ±0.01 PPM | |
| Resolution | 0.005 PPM |
Basic Information
| ITEM | DESCRIPTION |
|---|---|
| IP Class | IP66 |
| Dimensions | height 350 mm width 160 mm |
| Weight | 2.0 Kg |
| Interface | RS-485 |
| Communication protocol | Theta ASCII (defalut), MODBUS, SDI-12,NMEA (Optional) |
| Power | 125mA@ 12VDC |
| Operating voltage | 12 … 30VDC |
| Operating temperature | -40 … ＋70℃ |
| Operating humidity | 5% … 100%RH |
| Connector | 4pin |
| Cable | RVVP 5m |
