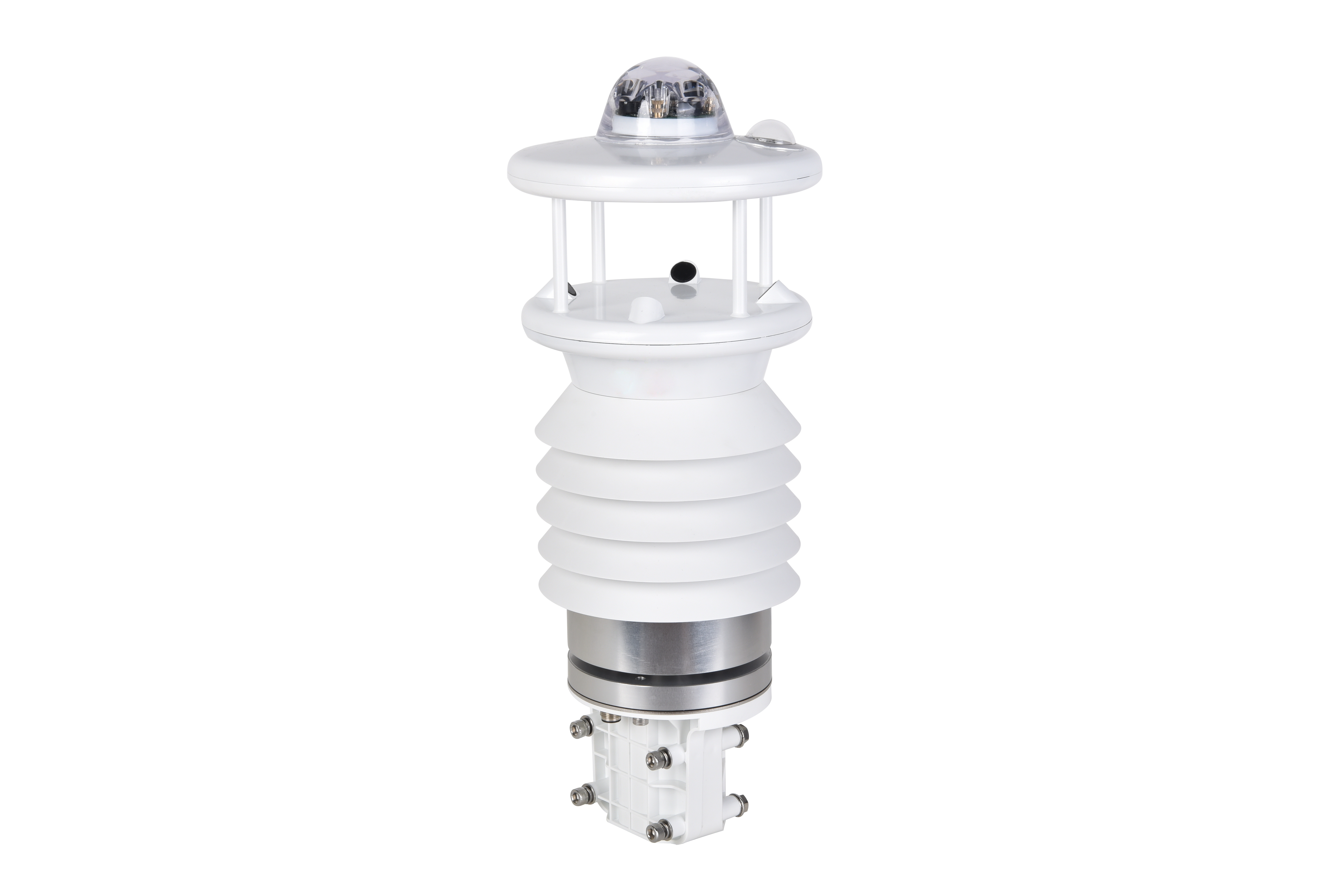

MP700
All-In-One Weather Station
MP Series is compact all-in-one weather sensor. Measurement of wind speed,wind
direction,temperature, relative humidity, atmospheric pressure, precipitation and solar
radiation.
One sensor supports up to 8 parameters monitoring.
All-in-one design minimize operating and maintenance costs.
Digital and analog interfaces make for easy, flexible integration.
Simply determine the conditions you need to measure, and you’ll find the perfect fit from the wide
range of models available.
All models offer optional heating function for cold weather accuracy.
Technical Parameters
| ITEM | DESCRIPTION | |
|---|---|---|
| Wind Speed | Measurement range | 0 … 60m/s |
| Accuracy | ±0.3 m/s or 3% of reading, whichever is greater | |
| Resolution | 0.1m/s | |
| Wind Direction | Measurement range | 0 … 359.9° |
| Accuracy | ±3° | |
| Resolution | 0.1° | |
| Barometric Pressure | Measurement range | 10 … 1100hpa |
| Accuracy | ±0.5hpa | |
| Resolution | 0.1hpa | |
| Air temperature | Measurement range | -40 … ＋80℃ |
| Accuracy | ±0.5℃ | |
| Resolution | 0.1℃ | |
| Relative humidity | Measurement range | 0 … 100% RH |
| Accuracy | ±3% RH | |
| Resolution | 0.1% RH | |
| Rainfall | Measurement range | 0 … 400 mm/h |
| Accuracy | ±5% | |
| Resolution | 0.1mm/h | |
| Solar radiation | Measurement range | 0 … 2000W/㎡ |
| Spectral Range | 300nm … 2100nm | |
| Non-linearity error | ≤3％ | |
| Accuracy | ±5% | |
| Resolution | 1W/㎡ |
Basic Information
| ITEM | DESCRIPTION |
|---|---|
| IP Class | IP66 |
| Dimensions | height 185 mm width 160 mm |
| Weight | 1.2 Kg |
| Analog outputs | 4 … 20 mA,1 … 5V |
| Interface | RS-485 (default), RS-232/SDI-12/RS-422 (optional) |
| Communication protocol | Theta ASCII (Optonal), MODBUS, SDI-12,NMEA (Optional) |
| Power | 12mA@ 12VDC, 10A@24VDC (with heating) |
| Operating voltage | 12 … 30VDC |
| Operating temperature | -40 … ＋70℃ |
| Operating humidity | 5% … 100%RH |
| Connector | 4pin |
| Cable | RVVP 5m |
